SMB Series

Stable way by spring pressure moving the electrodes built inside the bearing play is not even the long-term use,
well suited for very fine thin line.

TYPE	CAPACITY (KVA)	APPLICABLE WIRE		DIMENSIONS(mm)
TYPE	CAPACITY (KVA)	Steel (mm)	Copper (mm)	W	L	H
SMB-0.1	0.1	0.15-0.60		150	195	270
SMB-1	1	0.5-2.0	0.6-1.4	150	195	270
SMB-3	3	1.2-3.0		150	195	270
SMB CO-3	3		1.6-1.7	150	195	270
SMB CO-3.5	3.5		0.6-2.2	150	195	270
SMB-5	5	2.0-5.5	1.6-3.2	210	230	400
SMB-6.5	6.5	2.0-6.5		210	230	400
SMB-8	8	4.0-8.0		210	230	400
SMB CO-8	8		-4.0	210	230	400

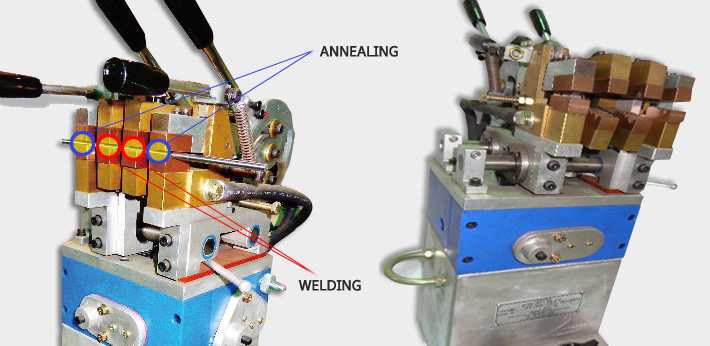

SMB SP Series

Heat treatment of the limitations of SMB sparking been developed for zero welder.
Once the clamp Possible to weld + heat treatment.

TYPE	CAPACITY (KVA)	APPLICABLE WIRE		DIMENSIONS(mm)
TYPE	CAPACITY (KVA)	Steel (mm)	Copper (mm)	W	L	H
SMB SP1	1	0.35-2.30		150	220	470
SMB SP5	5	2.0-5.5	1.6-3.2	210	330	560

SMW Series

s for the amount of product used primarily for thick wire welder. It is very effective to get a
continuous operation of the product durability.

TYPE	CAPACITY (KVA)	APPLICABLE WIRE		DIMENSIONS(mm)
TYPE	CAPACITY (KVA)	Steel (mm)	Copper (mm)	W	L	H
SMW20	20	5-8		400	750	1,350
SMW30	30	6-12		450	750	1,350
SMW30 (micro type)	30		2.5-5	450	750	1,000
SMW50	50	8-14	5-6.5	450	1,050	1,500
SMW75	75	8-16	5-8	450	1,050	1,500
SMW100	100	10-18	5-10	450	1,050	1,500

RW Series

Welds due to additional pressure method, because there is always a constant pressure is applied, you can get a stable joint.
And easy-to-use features to simplify operation, easy connection. Almost stepped joints can cause problems because no
line feed. Welding cable is best suited for steel cord.

TYPE	CAPACITY (KVA)	APPLICABLE WIRE	DIMENSIONS(mm)
TYPE	CAPACITY (KVA)	CABLE (mm)	W	L	H
RW	1.34	0.6-2.6	270	400	440

Pneumatic welding machine

Equipped with an air cylinder increased ease of welding products. Large amounts of product.

TYPE	CAPACITY (KVA)	APPLICABLE WIRE		DIMENSIONS(mm)
TYPE	CAPACITY (KVA)	Steel (mm)	Copper (mm)	W	L	H
SMW P	50~	5-	5-	450	1,200 More than	1,500 More than

Hydraulic Welding Machine

As a large hydraulic welder This is more stable than a thick wire clamp can be a smooth weld.
Large amounts of product.

TYPE	CAPACITY (KVA)	APPLICABLE WIRE		DIMENSIONS(mm)
TYPE	CAPACITY (KVA)	Steel (mm)	Copper (mm)	W	L	H
SMW H	50~	5-25	5-	730	1,530	1,470
